CI/CD Introduction and Overview

Introduction to CI/CD

Consolidated from Introduction_to_CI_CD.md.

CI/CD is a methodology and toolchain for integrating and shipping small changes frequently.
It reduces “integration hell” by continuously merging work and validating it automatically (builds/tests).
It requires both technical practices (automation, tests, reproducible builds) and cultural practices (small PRs, fast feedback, fix-the-build discipline).

CI is the practice of integrating changes into a shared codebase frequently.
Automation (build + tests + lint) is the baseline “confidence gate” before merging.

Continuous Delivery: the software is always deployable, but promotion to production may require approval.
Continuous Deployment: changes that pass the pipeline are deployed automatically (often gated with feature flags / staged rollout).

Note: “environment” is overloaded (runtime environment, environment variables, and GitHub Environments).

For a cross-platform terminology table (Jenkins/GitHub Actions/GitLab/CircleCI), see the CI/CD Overview and Diagram section below.

Consolidated from CI_CD_Overview_and_Diagram.md with process summary, artifacts, deployment strategies, and cross-platform terminology table.

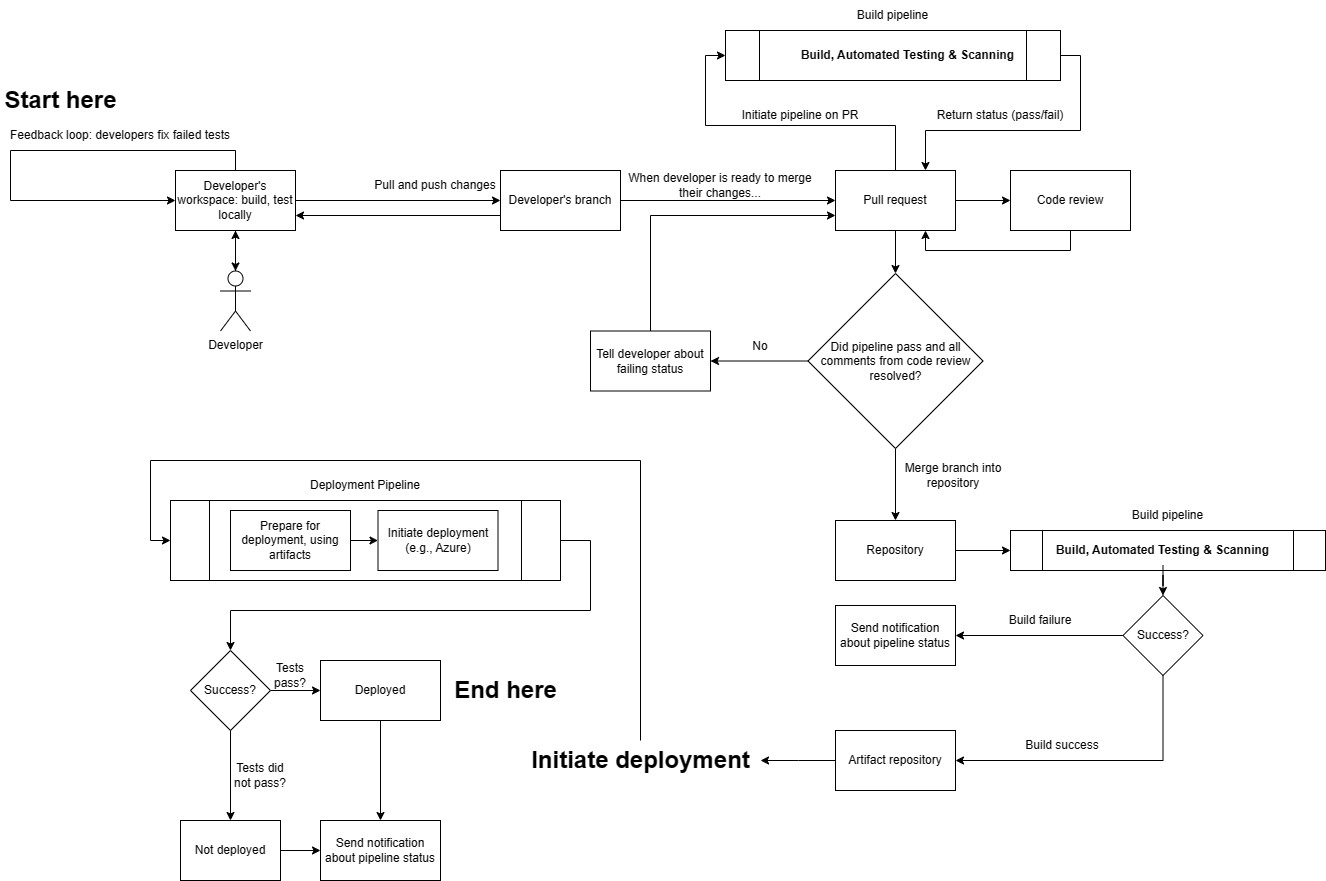

After tasks are broken down, developers implement them and open a pull request (PR). This triggers a CI pipeline (build, test, lint). The pipeline must succeed before the PR is merged.
A successful CI run publishes build artifacts to an artifact repository. At this stage, artifacts exist but are not yet customer-accessible.
A deployment pipeline (CD) promotes a selected artifact to an environment using infrastructure as code (IaC) so infrastructure and configuration are reproducible (avoid “snowflake” machines).
CD can deploy work-in-progress safely when the feature is gated behind a feature flag (code can be present in production but inactive).
Common rollout strategies include:
Blue/green: two environments (blue = current, green = new) for zero-downtime cutover.
Incremental/canary: release to a subset first, then gradually increase exposure.
Deployment does not necessarily mean release: deploy, deliver, and release are distinct concepts in modern pipelines.
Post-deploy, use continuous monitoring so issues can be detected quickly and rollbacks can occur if needed.

Trigger: pipeline runs on events (PR opened, merge to main, etc.).
Checkout and dependencies: runner checks out repo and restores dependencies from trusted sources.
Compilation/build: compile/transpile where applicable (language-dependent).
Linting/static analysis (optional): style, quality, and some bug patterns.
Automated tests:
Unit tests
Integration tests
End-to-end tests
Artifact publishing: publish immutable build outputs to an artifact repository.
Deployment: select an artifact and deploy to the target environment (often with additional checks).

Generic term	Definition	Jenkins	GitHub Actions	GitLab CI/CD	CircleCI
Build step	A single task/command as part of the build process.	Build Step	Job	Job	Job
Environment	The compute environment where build/tests run (OS/tools).	Node	Runner	Runner	Executor
Workflow	Sequence of jobs/steps defining the CI process.	Pipeline	Workflow	Pipeline	Workflow
Trigger	Event/condition that starts CI/CD.	Build Trigger	Event	Trigger	Trigger
Secrets	Sensitive build/deploy data (passwords, keys, tokens).	Credentials	Secrets	Variables	Environment Variables
Container	Isolated runtime environment for predictable execution.	Agent/Docker Agent	Container	Docker	Docker Executor
Configuration	File(s) that define the CI/CD behavior.	Jenkinsfile	`.github/workflows/*`	`.gitlab-ci.yml`	`.circleci/config.yml`
Artifacts	Files produced by builds (binaries, bundles, packages).	Build Artifacts	Artifacts	Artifacts	Artifacts
Cache	Temporary storage to speed up subsequent runs.	Workspace Cache	Cache	Cache	Cache
Parallelism	Ability to run jobs concurrently.	Parallel Builds	Matrix Builds	Parallel	Parallel Jobs
Build status	Outcome indicator (success/fail/in-progress).	Build Status	Check	Pipeline Status	Build Status

Consolidated from Adopting_CI_CD_and_Makefile.md with staged adoption advice and simple makefile.

Start with a basic pipeline that builds your targets and notifies on failure.
Treat the pipeline as production infrastructure: a broken pipeline must be fixed immediately.
Add capabilities incrementally:
Static analysis
Unit tests (start with new code and high-risk areas)
Formatting enforcement
Metrics and dashboards (build time, artifact size, coverage)
On-target testing (automate flashing + running + collecting results)

main.o: main.c mathFunctions.h utilFunctions.h gcc -c main.c

utilFunctions.o: utilFunctions.c utilFunctions.h gcc -c utilFunctions.c

mathFunctions.o: mathFunctions.c mathFunctions.h gcc -c mathFunctions.c
